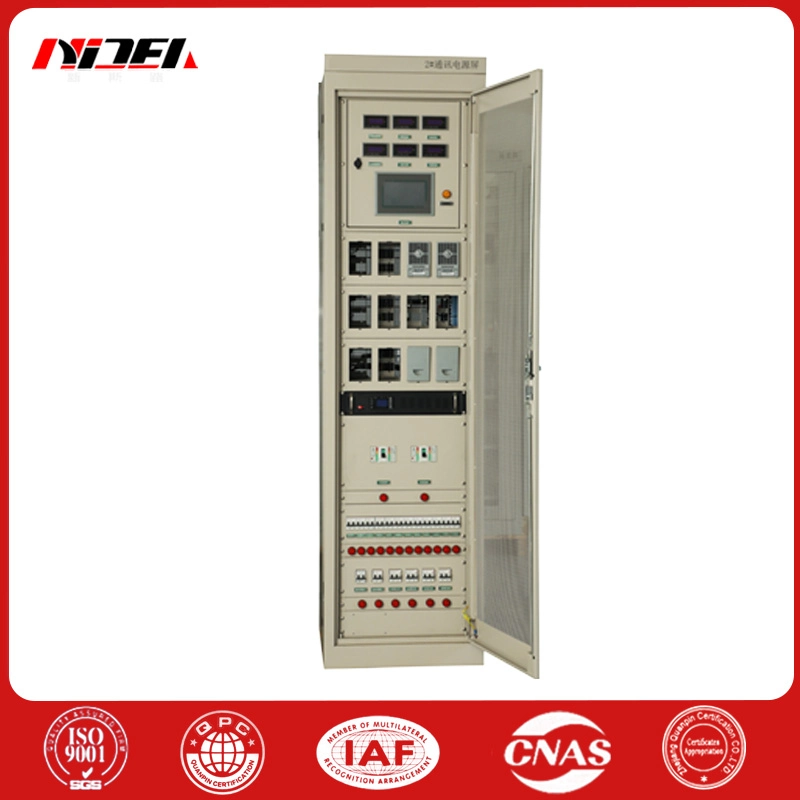

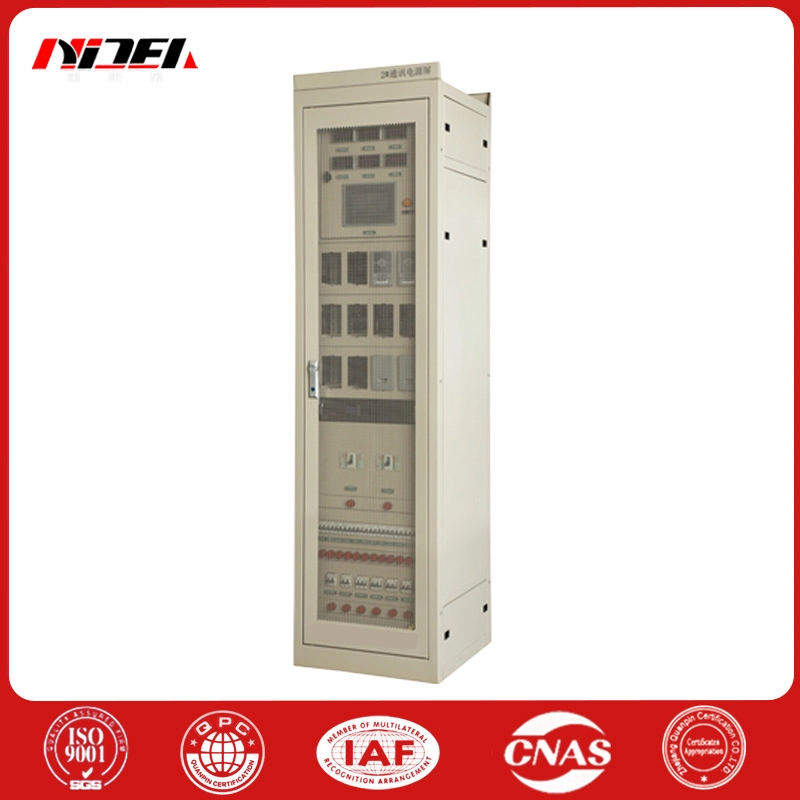

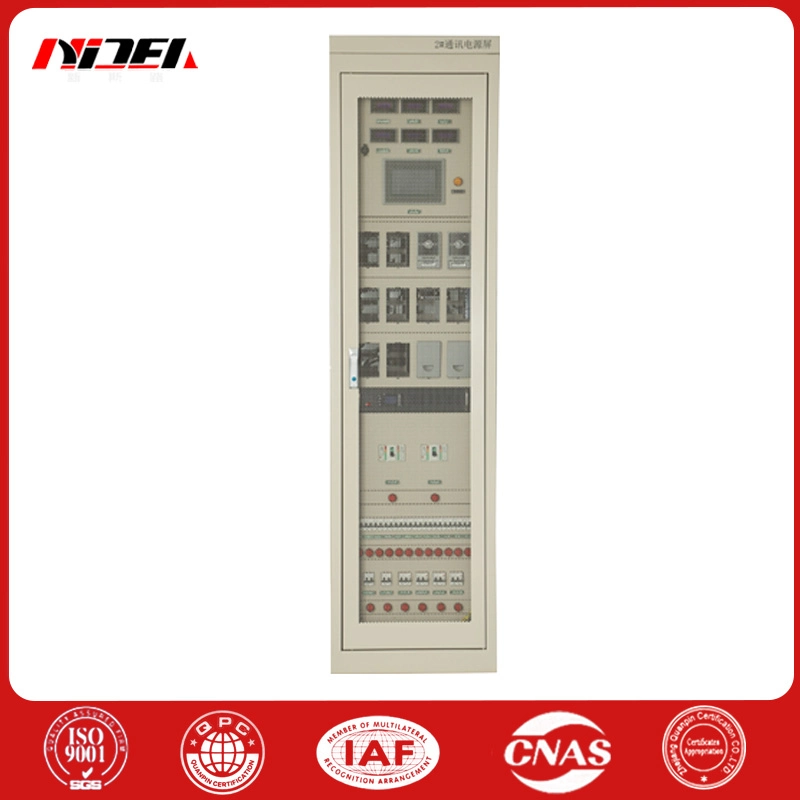

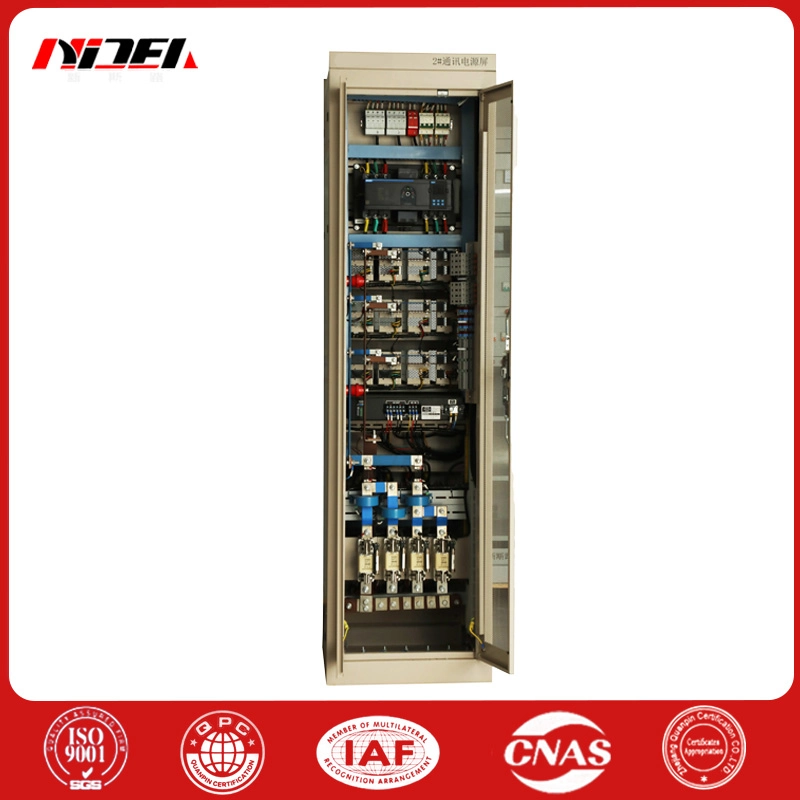

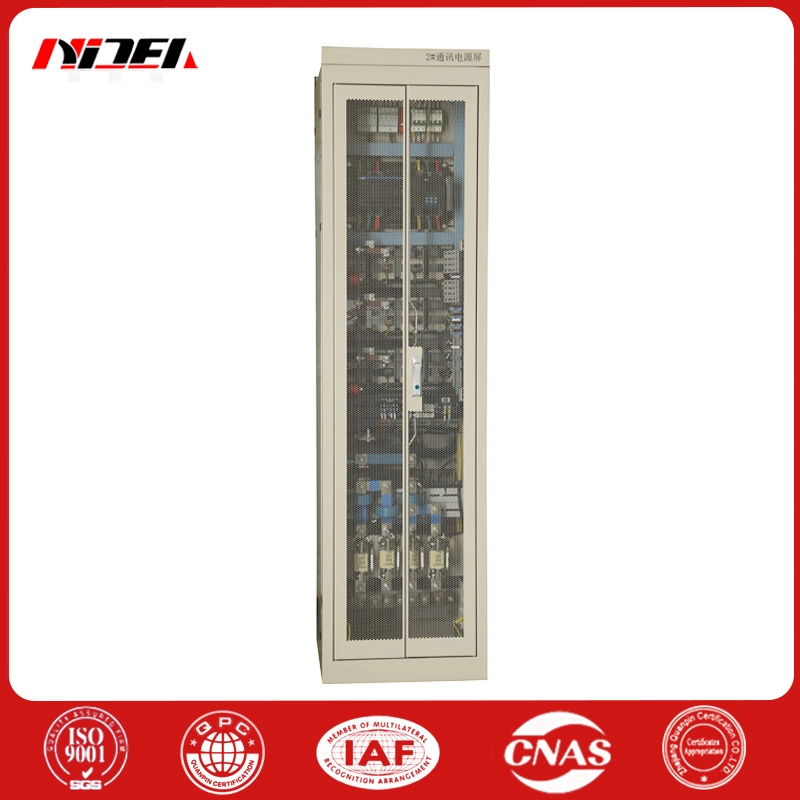

DC 24 To 48V Communication Power Supply Screen

DC 24 to 48V communication power supply screenis suitable for mobile communication base stations, power, railways, industrial and mining enterprises, etc. It can be used as the operation and control power supply of program-controlled switches, mobile communication equipment, power carriers, optical cable communication equipment, and microwave communication equipment. It consists of monitoring module, communication rectifier module, insulation detection module, battery inspection module, switch quantity monitoring module, step-down module, etc. It has the characteristics of advanced technology, reasonable configuration, intelligent measurement and control, and simple operation.

Functional features

1.DC 24 to 48V communication power supply screen Automatic switching of two AC inputs to ensure normal operation of the system.

2. Wide input voltage range and strong grid adaptability.

3. Adopting high-frequency switching power supply technology, modular design, N+1 hot backup, high reliability.

4. The rectifier module can be hot-swapped with power on, and daily maintenance is convenient and fast.

5. High-precision dynamic current sharing, can be operated independently, master-controlled or controlled.

6.The DC 24 to 48V communication power supply screen offers a choice between LCD and touchscreen monitoring, featuring a rich and user-friendly interface for simple and convenient operation.

7. The monitoring system can be fully monitored and controlled in real time. It can be used for system settings and information query. It can also implement the four remote functions of "telemetry, remote control, remote communication, and remote adjustment" through background monitoring and remote monitoring.

8. The monitoring system can automatically manage the battery voltage, charge and discharge current, and battery temperature compensation accurately, with over-voltage and under-voltage. Over-temperature alarm and fault alarm to ensure that the battery works in the best condition and extend the battery life.

9. It provides two communication interfaces, RS23 and RS485, and three communication protocols, RTU, CDT, and MODBUS.

Dimensions

Height*width*depth mm: 1800*800*600 2260*800*600 2360*800*600

DC 24 to 48V communication power supply screen Technical Parameters
