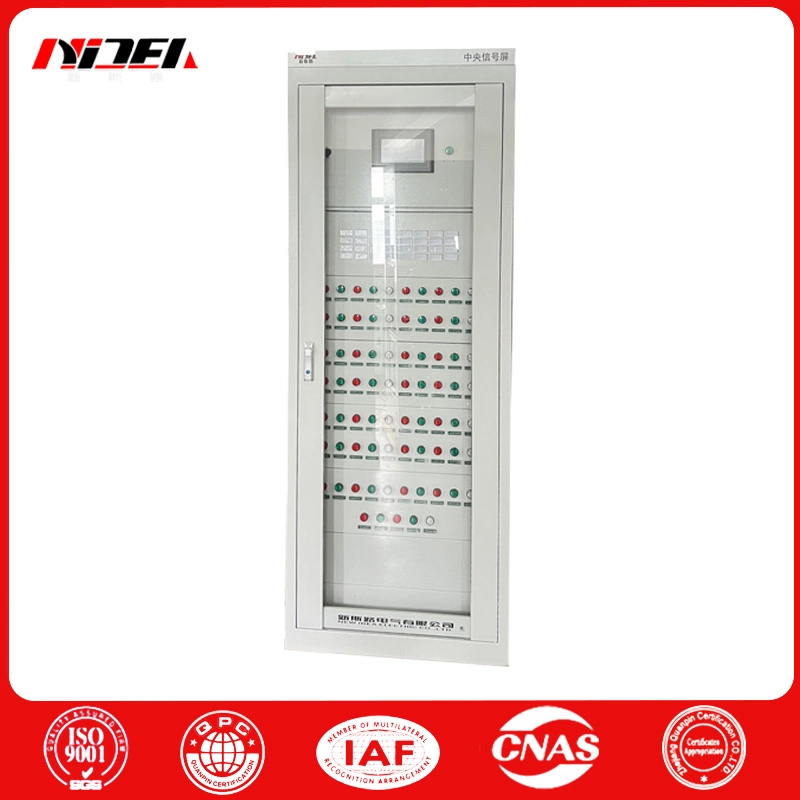

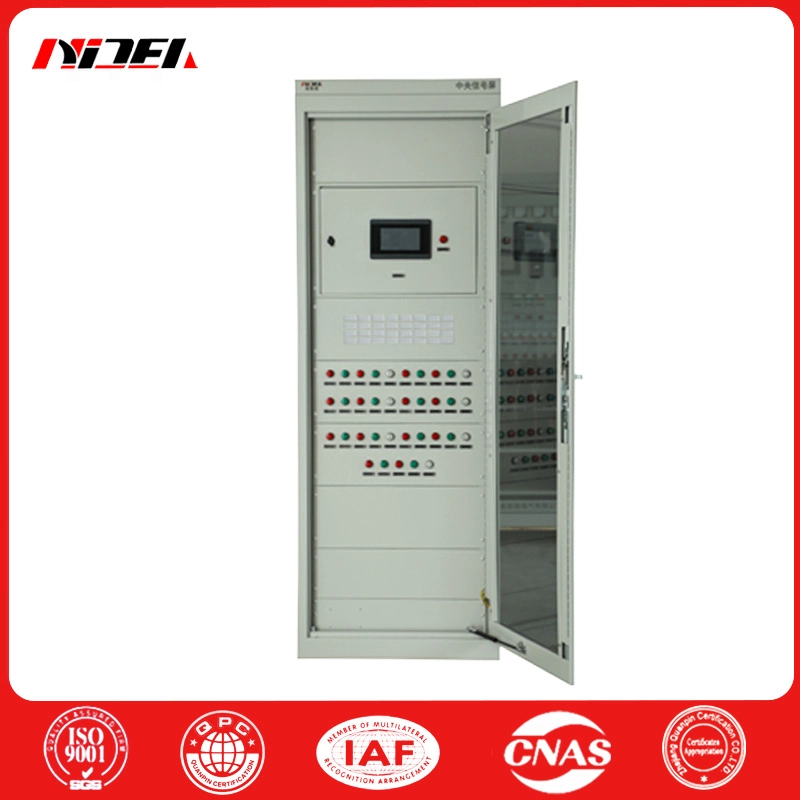

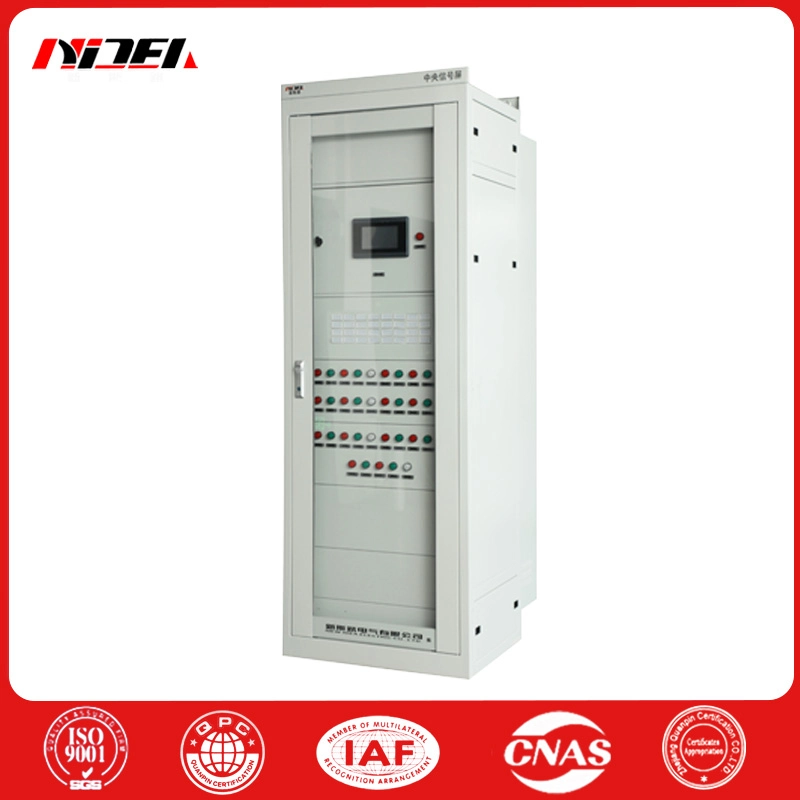

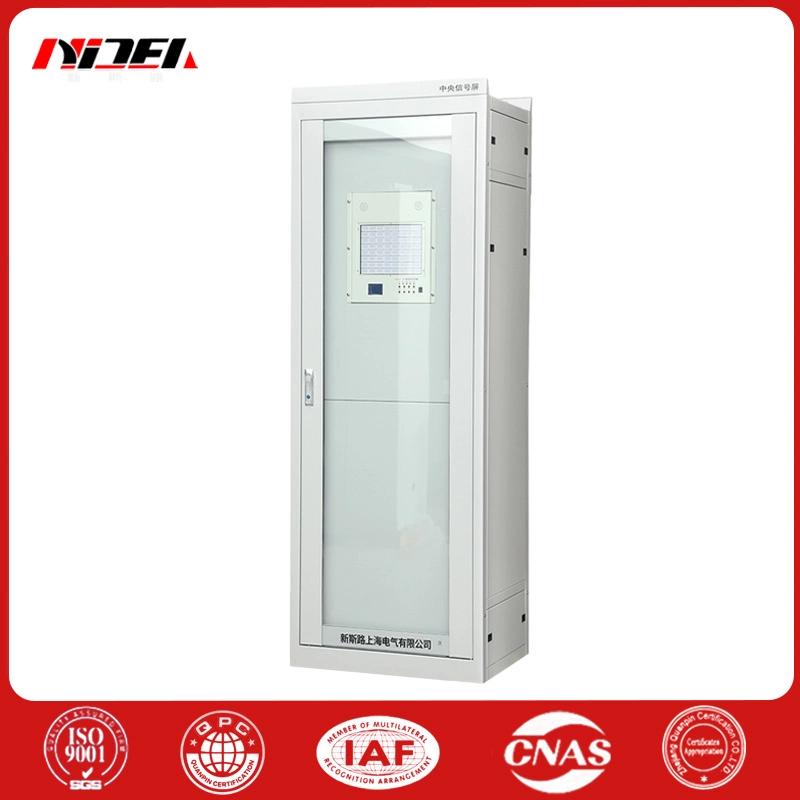

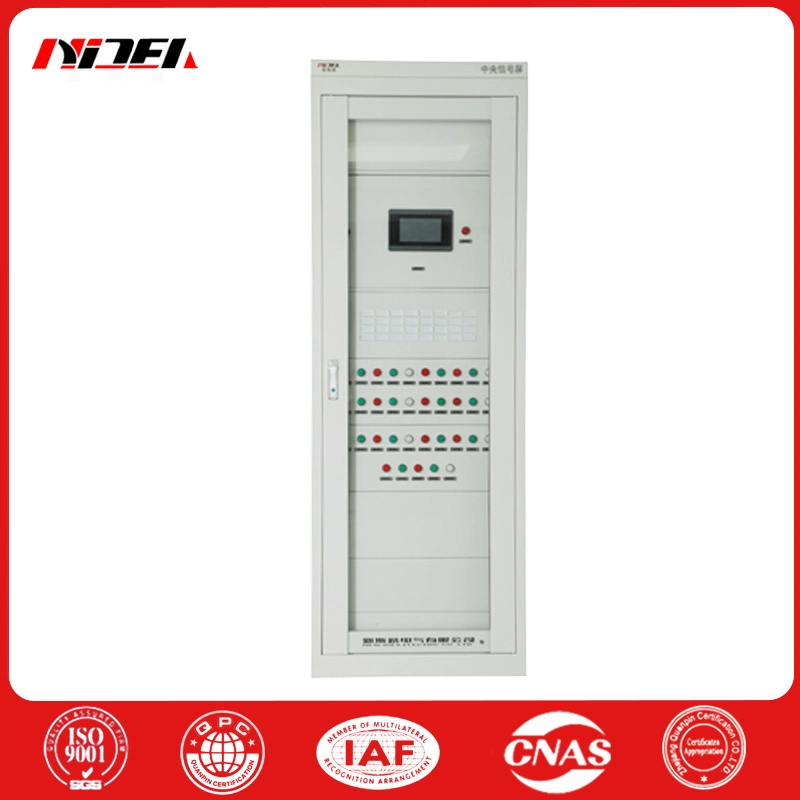

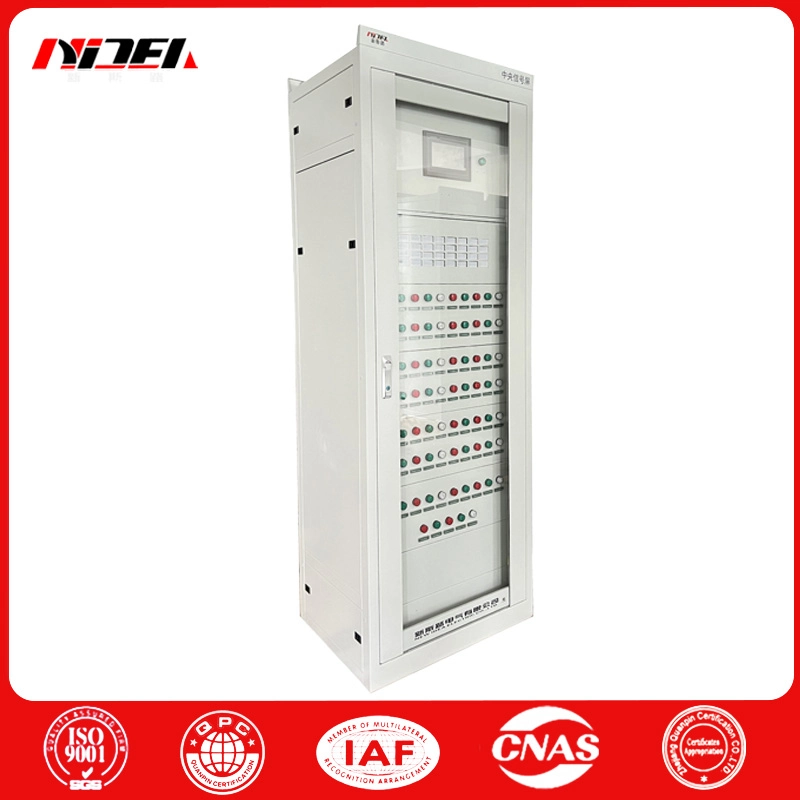

Microcomputer Based Central Signal Screen

Microcomputer based central signal screenis suitable for substations, power stations, industrial and mining enterprises, electrified railways and high-rise buildings. It has working signals, warning signals, accident signals and sound and light alarm functions.

Functional features

1. Microcomputer based central signal screen can make multiple definitions for each signal channel according to different on-site requirements:

Open or block a certain channel.

Optional normally open or normally closed contacts as alarm mode.

The nature of the input signal (i.e. accident signal or warning signal) can be defined by yourself.

The alarm sound (i.e. high pitch or low pitch) can be defined by yourself, and the alarm impression can be defined by manual silencing or delayed automatic silencing.

2. Microcomputer based central signal screen can drive external buzzers or bells according to the needs of the site for the alarm sound.

3. Microcomputer based central signal screen directly queries the on-site operation status through the touch screen (recalling in the order of the signal occurrence time) and realizes the definition of each signal.

4. Directly connect to the on-site signal through the terminal without the need for intermediate relay conversion.

5. Microcomputer based central signal screen provides two communication interfaces: RS232 and RS485, which can communicate with the host computer to realize the "four remote" functions.

Product dimensions

Height*width*depth mm: 1800*800*600 2260*800*600 2360*800*600

Microcomputer based central signal screen technical parameters
