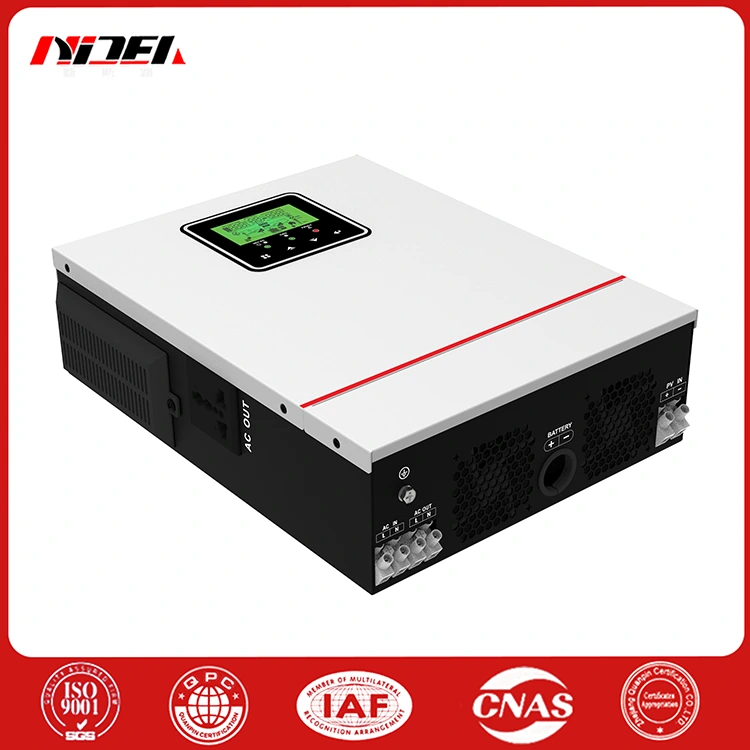

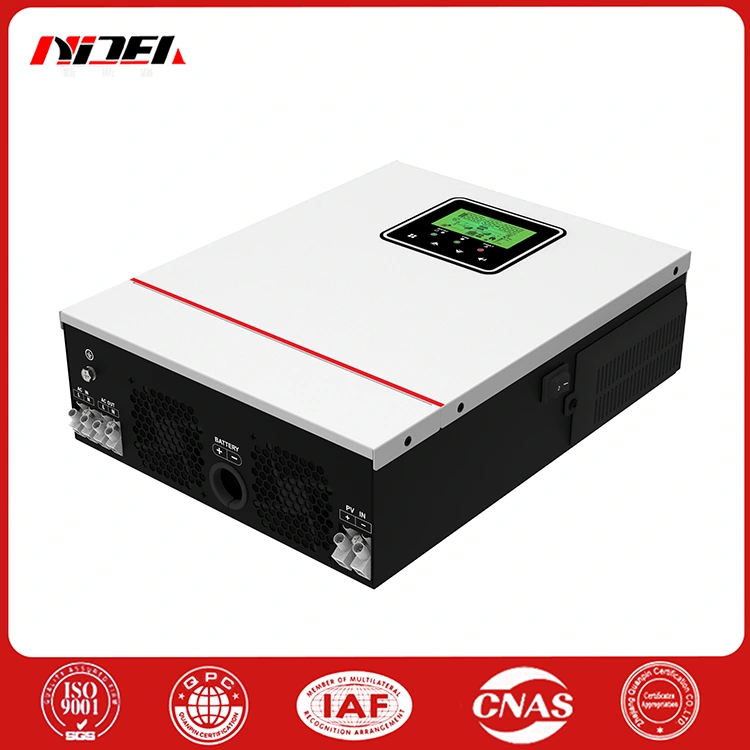

NMS Series1500W/1500VA Solar Home Inverter

Performance Parameters

NMS Series1500W/1500VA Solar Home Inverter input parameters

PV input voltage range：30-150VDC, can adapt to the output voltage of a variety of solar panels, and can better utilize the electricity generated by solar panels under different lighting conditions.

Maximum PV array open circuit voltage: 150V DC limits the upper limit of the open-circuit voltage of the connectable solar panels, ensuring the safe operation of the inverter.

Maximum solar charging current: 40A, which determines the charging current obtained from the solar panel and affects the charging speed and efficiency.

NMS Series1500W/1500VA Solar Home InverterOutput Parameters

AC output voltage: 230V AC±5%, output stable AC power, provide stable power for the load.

Frequency range:50Hz/60Hz (auto-sensing), can automatically adapt to the grid frequency standards in different regions.

Rated power: 1500W/1500VA, can continuously and stably output power, can meet the power demand of more household appliances.

Peak power:3000VA, can provide large power in a short time, meet the needs of some appliances with large starting power.

Conversion efficiency: PV to INV is 98%, battery to INV is 94%, high-efficiency energy conversion helps to improve the utilization efficiency of solar energy.

Conversion time: 10ms for personal computers and 20ms for home appliances, can achieve fast switching and ensure the stable operation of electrical equipment.

Product Features

Maximum Power Point Tracking (MPPT): Built-in 40A MPPT solar charger can dynamically adjust the working point so that the solar panel always works near the maximum power point to improve power generation efficiency.

Protection function: It has multiple protection functions such as input overvoltage, undervoltage, reverse connection protection, output short circuit protection, over-temperature protection, etc., which can effectively protect the inverter and connected devices.

Pure sine wave output: The output AC power is a pure sine wave, which is the same as the AC power waveform, which can better meet the needs of electrical equipment with high power quality requirements and reduce damage to the equipment.

Intelligent battery charging design: Automatically adjust the charging strategy according to the battery status, optimize the battery charging process, and extend the battery life.

Dust-proof design:Built-in dust-proof kit can adapt to harsh environments, reduce the impact of dust on inverter performance, and improve reliability and stability.

Customization:It can meet a variety of customized needs, and can adjust functions and parameters according to different user needs.

NMS Series1500W/1500VA Solar Home Inverter Product Data Sheet
