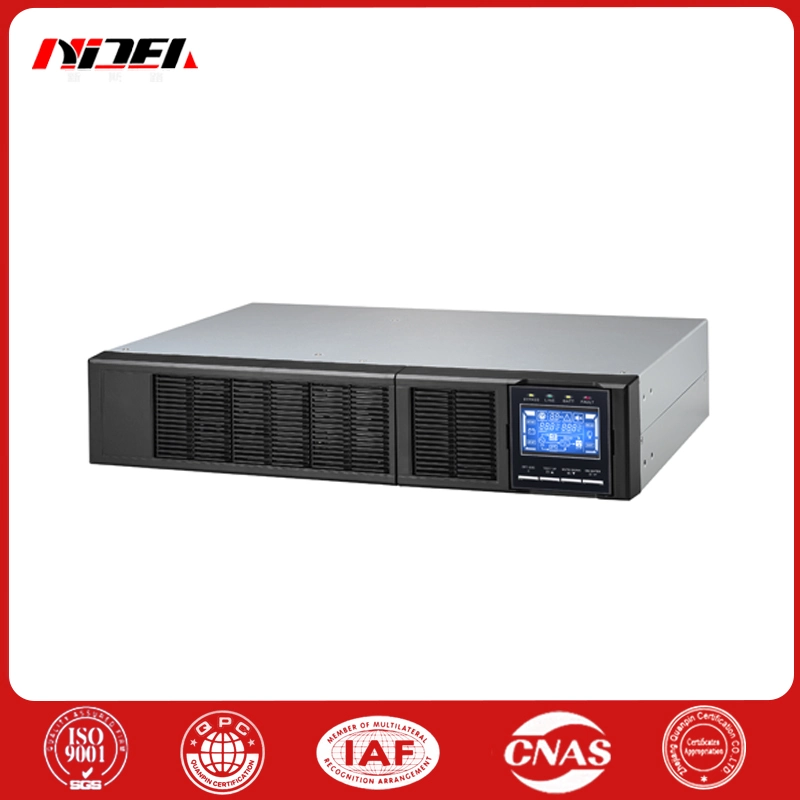

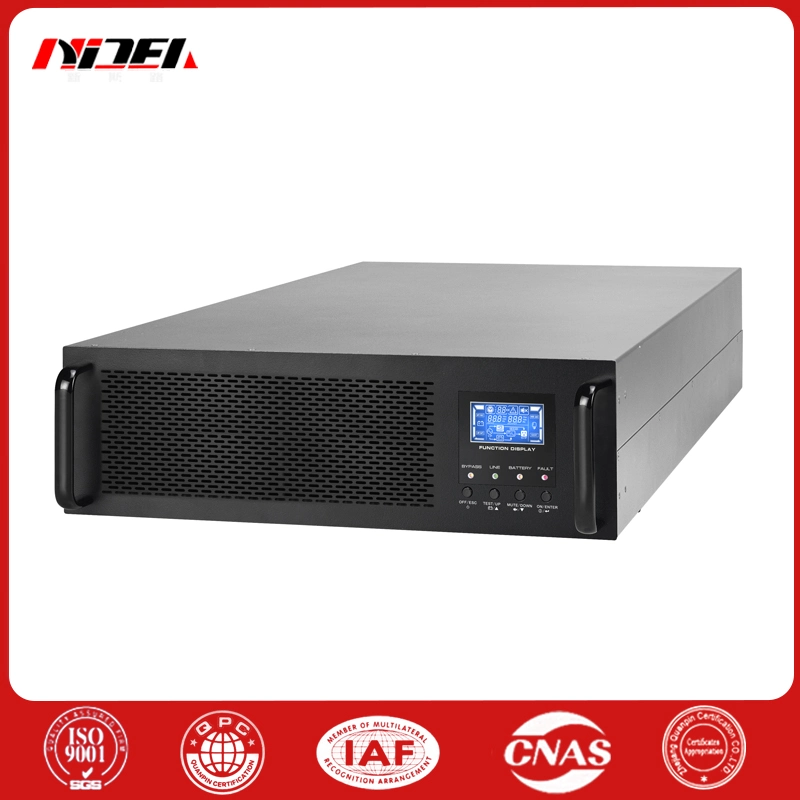

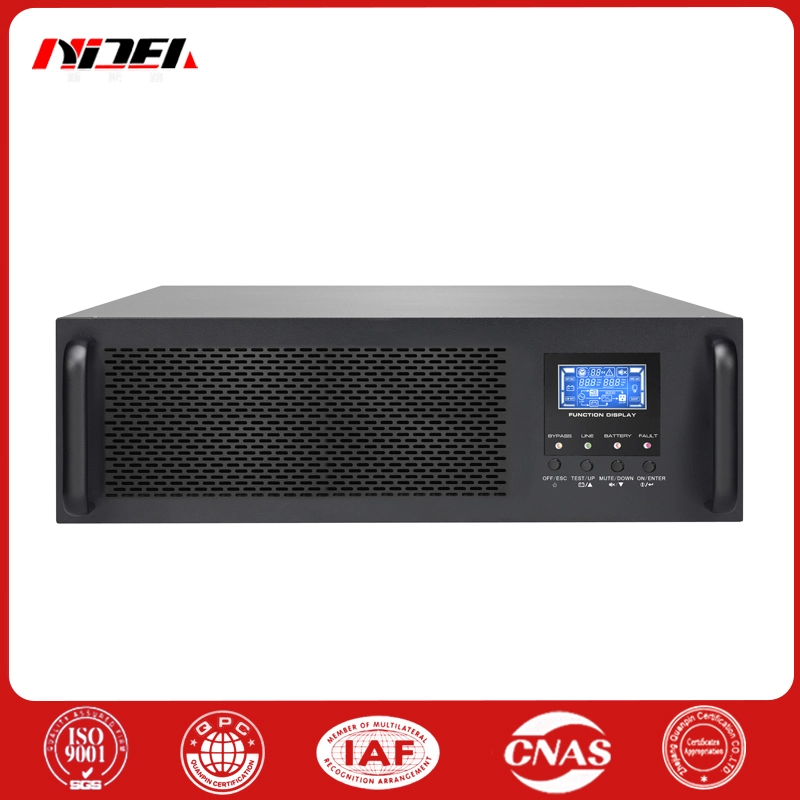

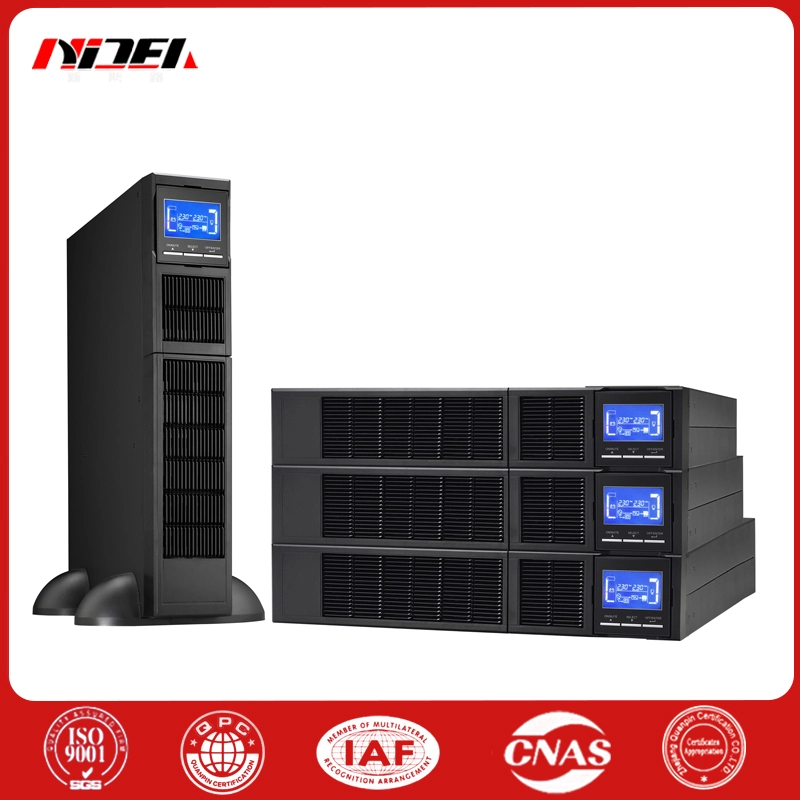

High Frequency Rack Mounted Standard Machine UPS
As a professional manufacturer of high-quality High frequency rack mounted standard machine UPS, you can rest assured to purchase High frequency rack mounted standard machine UPS from our factory. We will provide you with the best after-sales service and timely delivery.
High frequency rack mounted standard machine UPS operates at relatively high frequencies, typically in the range of tens of kilohertz. Compared to low-frequency (or traditional) UPS designs based on 50Hz or 60Hz transformer systems, high-frequency UPS uses high-frequency switch technology. This allows for more compact and lightweight designs, as high-frequency transformers and other components can be smaller.
High frequency rack mounted standard machine UPS also has better power factor correction capability. Power factor is an indicator for measuring the efficiency of electricity usage. High frequency UPS can adjust the input power factor closer to the unit, which means that High frequency rack mounted standard machine UPS can more effectively obtain power from the main power source and reduce the load on the distribution system
Product features:
1. Truly realize online double conversion
2. DSP technology ensures high efficiency
3. Output power factor can reach 1.0
4. Ultra-wide AC input range (100V-300V)
5. Input power factor correction function
6. ECO mode can effectively save energy
7. Compatible with generator input
8. SNMP+USB+RS-232 multiple monitoring
9. Three-input and three-output, three-input and single-output, single-input and single-output optional
High frequency rack mounted standard machine UPS Model Description:
|
Model |
ED-1KR（S） |
ED-2KR（S） |
ED-3KR（S） |
ED-6KR（S） |
ED-10KR（S） |
||||||||||||
|
Phase |
Single-phase grounding |
||||||||||||||||
|
capacity |
1000VA/800W |
2000VA/1600W |
3000VA/2400W |
6000VA/4800W |
10000VA/8000W |
||||||||||||
|
Input voltage |
100/110/115/120/127VAC or 200/208/220/230/240VAC |
208/220/230/240VAC |
|||||||||||||||
|
Frequency scope |
40Hz to70Hz |
46Hz to 54Hz to 56Hz to 64Hz |
|||||||||||||||
|
Mains mode |
88% |
89% |
90% |
92% |
93% |
||||||||||||
|
Battery Mode |
83% |
87% |
88% |
90% |
91% |
||||||||||||
|
Standard machine |
Battery Model |
12V/9AH |
12V/9AH |
12V/9AH |
12V/9AH |
||||||||||||
|
number |
2 |
4 |
6 |
16 |
20 |
16 |
20 |
||||||||||
|
Standard charging time |
4 hours to charge to 90% |
9 hours to charge to 90% |
|||||||||||||||
|
Maximum charging current |
1.0A |
1A/2A（Adjustable） |
|||||||||||||||
|
Charging voltage |
27.4VDC±1% |
54.7VDC±1% |
82.1VDC±1% |
218.4VDC±1% |
273VDC±1% |
218.4VDC±1% |
273VDC±1% |
||||||||||
