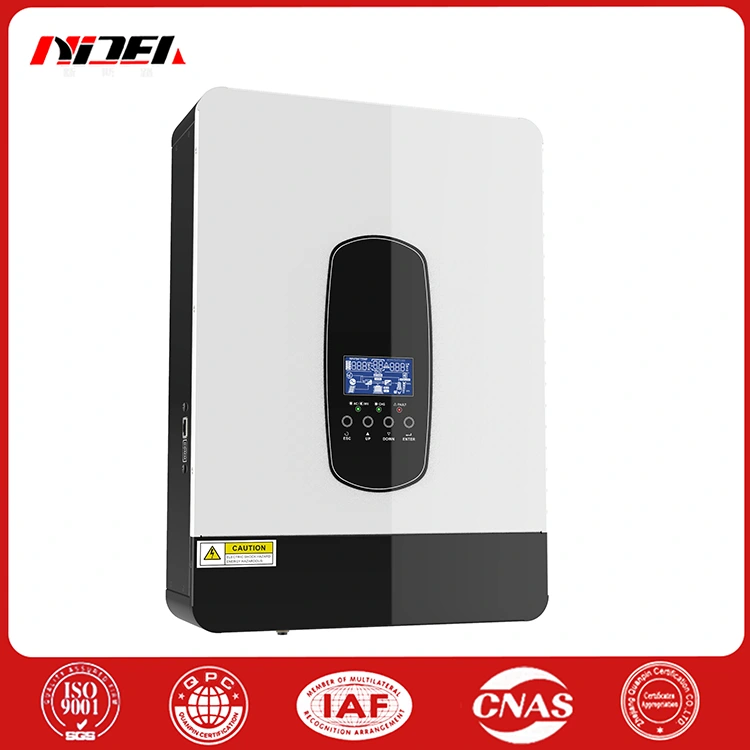

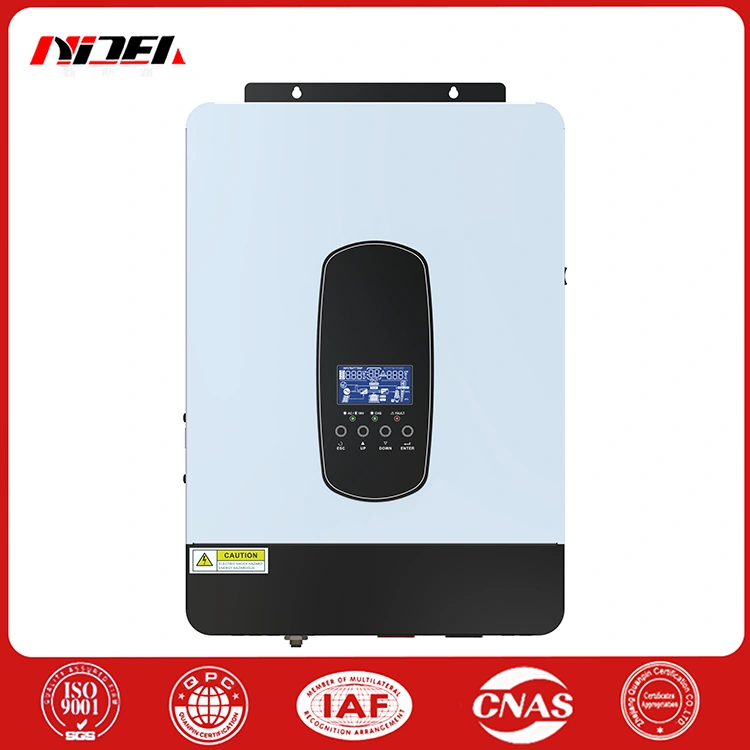

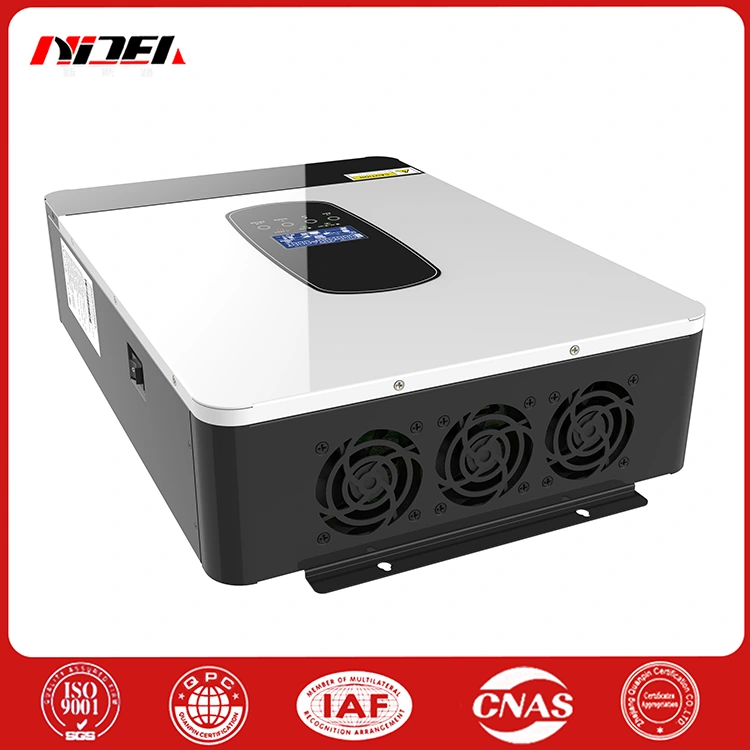

SP Series 4200VA/3800W Photovoltaic Energy Storage Inverter
As the professional manufacture, we would like to provide you SP series 4200VA/3800W photovoltaic energy storage inverter. And we will offer you the best after-sale service and timely delivery.
SP series 4200VA/3800W photovoltaic energy storage inverter basic parameters
|
Rated power |
4200VA, active power 3800W. |
|
Battery voltage |
12V/24V/48VDC optional. |
|
AC input |
voltage is 230VAC, with voltage stabilization output (AVR) function. |
|
Output frequency |
can be set by key. |
|
Surge power |
8000VA. |
|
Conversion time |
10ms for personal computers and 20ms for home appliances. |
|
Maximum charging current |
80A. |
Product Features
Multiple charging modes: support PV and AC charging, AC or PV priority mode can be set.
High MPPT efficiency: MPPT efficiency exceeds 98%, which can effectively save energy, automatically track the maximum power point of solar panels, and improve the utilization efficiency of solar energy.
Pure sine wave output: output pure sine wave, friendly to the environment and electrical equipment, and can ensure stable and efficient operation of various equipment.
Intelligent monitoring: supports operation and monitoring via Wi-Fi or APP, allowing users to understand the operating status of the inverter anytime and anywhere.
Wide operating voltage range: It has a wide range of adaptability and can work normally even with 1-2 solar panels, which helps reduce system costs.
Strong battery compatibility: It is compatible with different types of solar cells such as lead-acid batteries and lithium batteries.
Good load adaptability: It can support a variety of electrical appliances such as computers, TVs, air conditioners, washing machines, and hair dryers.
Taking sukflow's SP-4200-Plus as an example, it also has the following features:
Perfect safety protection: built-in overcharge, over-discharge, over-current, overheating automatic protection, as well as overvoltage, reverse polarity and other intelligent protection functions, and built-in safety protection BMS.
Standard size: 2U standard size, simple front panel, easy operation.
Customizable communication: Communication content can be customized according to the information provided by the customer
Product Data Sheet
|
MODEL |
SP-2200 |
SP-3200 |
SP-4200 |
SP-4200 |
SP-7000 |
|
Rated Power |
2200VA/1800W |
3200VA3000W |
4200VA/3800W |
4200VA/3800W |
7000VA/6200W |
|
INPUT |
|
||||
|
Voltage |
230VAC |
||||
|
Selectable Voltage Range |
170~280VAC(For Personal Computers) |
||||
|
90~280VAC(For Home Appliances) |
|||||
|
Frequency Range |
50 Hz/60Hz(Auto sensing) |
||||
|
OUTPUT |
|
||||
|
AC Voltage Regulation(Batt.Mode) |
230VAC±5% |
||||
|
Surge Power |
400VA |
6400VA |
8400VA |
8400VA |
14000VA |
|
Transfer Time |
10ms(for personal computers);20ms(for home appliances) |
||||
|
Waveform |
Pure Sine Wave |
||||
|
BATTERY&AC CHARGER |
|
||||
|
Battery Voltage |
12VDC |
24VDC |
24VDC |
48VDC |
48VDC |
|
Floating Charge Voltage |
13.5VDC |
27VDC |
27VDC |
54VDC |
54VDC |
|
Overcharge Protection |
15.5VDC |
31VDC |
31VDC |
61VDC |
61VDC |
|
Maximum Charge Current |
60A |
80A |
60A |
80A |
|
|
SOLAR CHARGER |
|
||||
|
Max.PV Array Power |
2000W |
3000W |
6000W |
||
|
MPPT Range @Operating Voltage |
55~450VDC |
||||
|
Maximum PV Array Open Circuit Voltage |
450VDC |
||||
|
Maximum Charging Current |
80A |
110A |
80A |
110A |
|
|
Maximum Efficiency |
98% |
||||
|
PHYSICAL |
|
||||
|
Dimension.H*W*D(mm) |
405*286*98 |
423*290*101 |
423*290*106 |
||
|
Net Weight(kgs) |
5 |
55 |
6.8 |
6.9 |
8 |
|
Communication Interface |
Two communication One RS485 port for BMS ports;AnotherRS485/RS232 forremote monitoring |
||||
|
OPERATING ENVIRONMENT |
|
||||
|
Humidity |
5%to 95%Relative Humidity(Non~condensing) |
||||
|
Operating Temperature |
-10℃ to 55℃ |
||||
|
Storage Temperature |
-15℃ to 60℃ |
||||
