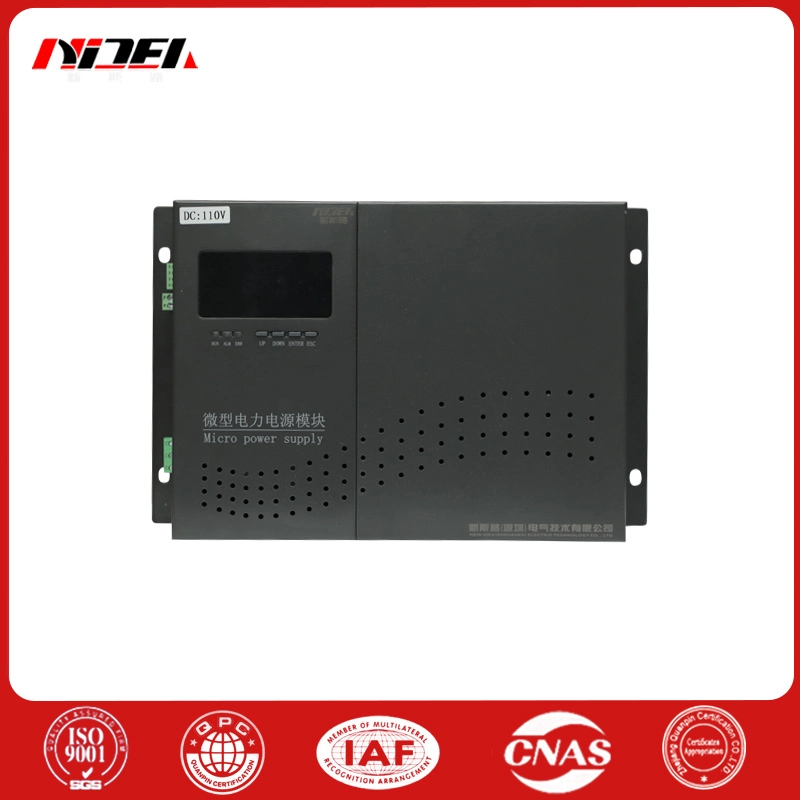

110V Wall Mounted DC Cabinet With 12A/H18 Batteries

110V Wall Mounted DC Cabinet With 12A/H18 Batteries is a high-reliability product designed by New Idea Electric Co., Ltd. with many years of development experience. It consists of AC input distribution part, rectifier part, etc. The system provides DC power for circuit breaker opening and closing and instruments, meters, relay protection and emergency lighting in the secondary circuit. It has the characteristics of small size, simple structure, wall-mounted installation, and no space occupation. It is mainly used in various switchgears and user transformers.

Functional features:

1. 110V Wall Mounted DC Cabinet With 12A/H18 Batteries has the characteristics of small size, simple structure, wall-mounted installation, and no space occupation.

2. 110V Wall Mounted DC Cabinet With 12A/H18 Batteries adopts the unique modular design of switching power supply, redundant hot backup,

3. Ultra-wide voltage input range, strong grid applicability, can be used in places with relatively harsh environment.

4. The charging module can be plugged in and out with power, and online maintenance is convenient and fast.

5. The charging module adopts the latest international soft switching technology, with high conversion rate and low electromagnetic interference.

6. 110V Wall Mounted DC Cabinet With 12A/H18 Batteries hardware low-difference autonomous current sharing technology, the typical value of output current imbalance between modules is ±3%.

7. The charging module has passed CE safety and electromagnetic compatibility certification, which is reliable and safe.

8. The open interface design has powerful communication functions, which is very convenient to connect with the substation RTU device or the power plant computer monitoring system DCS mother.

9. Automatic management and protection of batteries, real-time automatic monitoring of battery working status and various parameters. It is more convenient to use with the battery inspection instrument to monitor the fault status of the battery pack and its individual cells.

10. Built-in insulation monitoring relay, external insulation relay or insulation tester can also be used, which is flexible.

11. Convenient and real-time monitoring of DC bus insulation.

12. According to user needs, a signal box can be added to realize the alarm function of accident signal or warning signal.

13. 110V Wall Mounted DC Cabinet With 12A/H18 Batteries can choose two AC inputs (one of which can be PT100VAC power supply), and PT power supply automatically limits the output power.

System adjustment:

Before leaving the factory, the 110V Wall Mounted DC Cabinet With 12A/H18 Batteries has been tested and all working points have been adjusted. In principle, the user unit can use it after unpacking, but there are unforeseen factors that cause failures during transportation. Therefore, it must be carefully checked before it is officially put into operation. After the inspection, you can first use a resistive load (such as a resistor, electric furnace, etc.) for trial operation. When the performance indicators of the charger and the operating voltages of the feeder cabinet meet the requirements and the electrical components operate correctly, the battery and load can be connected for formal operation. All kinds of potentiometers in the equipment have been adjusted according to the specifications before leaving the factory. Unless there is a special need, no adjustment is required. If further adjustment is required, please contact the manufacturer.

Detailed instructions for packaging, transportation and storage:

1. Careful packaging: We use fully enclosed moisture-proof and dust-proof packaging boxes to ensure that the product is not mechanically damaged during transportation. Each battery will be individually packaged to provide maximum protection.

2. Safe transportation: During transportation, we will ensure that the product is not subjected to severe vibration, impact or inversion to ensure the integrity and safety of the product.

3. Proper storage: If the device cannot be put into use immediately after purchase and needs to be stored for a short or long period of time, please follow the following suggestions:

● The device should be stored in a well-ventilated and dry environment, away from high temperature, dust and metal powder-intensive areas.

● The storage place should have rainproof, moisture-proof and sun-proof measures to ensure that the device is not affected by the external environment.

4. Specific storage conditions: For batteries, they should be stored in a dry, ventilated indoor environment with a room temperature not exceeding 25°C and a humidity not exceeding 70%.

5. Long-term storage maintenance: For batteries prepared for long-term storage, it is recommended to perform normal charging and discharging operations every six months. After discharge, the battery surface should be cleaned, and a layer of vaseline should be evenly applied on the battery poles, nuts, metal pads and jumper plates, and then stored in a ventilated, dry indoor environment at a temperature of 25±10℃.
